This size is a popular alternative to 50 x 25mm (2 x 1") Oval Tube
Get the technical datasheet for more information on tolerances, material and fabrication.
Not the size you're looking for?
More information

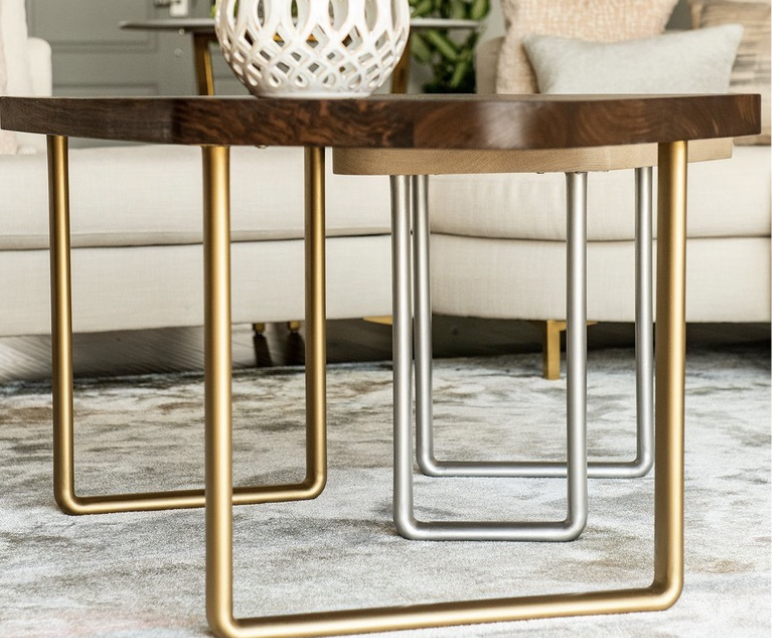

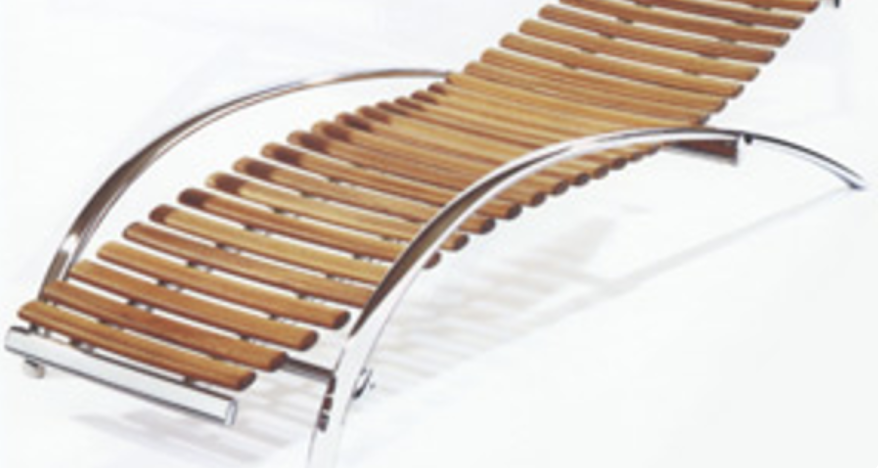

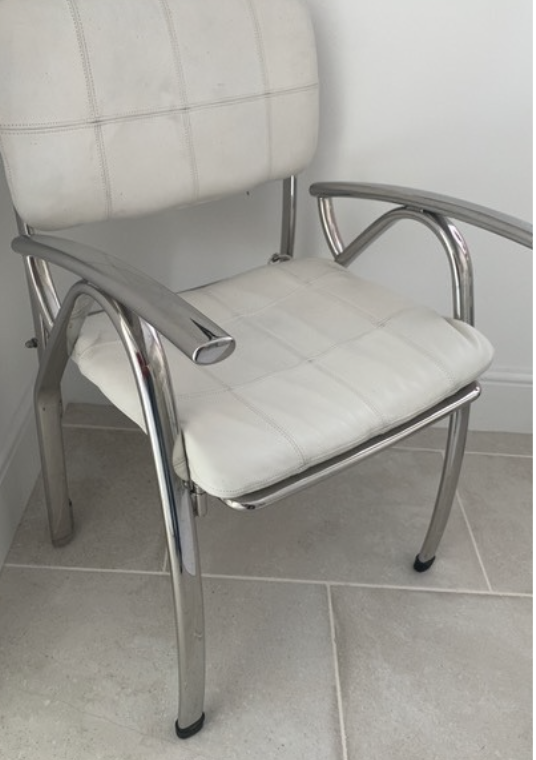

This popular oval tube is cold-formed from 38.1 mm (1½") OD round tube (widely used for circular handrail), into an ergonomic 47 × 25mm oval section. Typical applications include handrails, grab rails, door hardware, marine railings, furniture and OEM components.

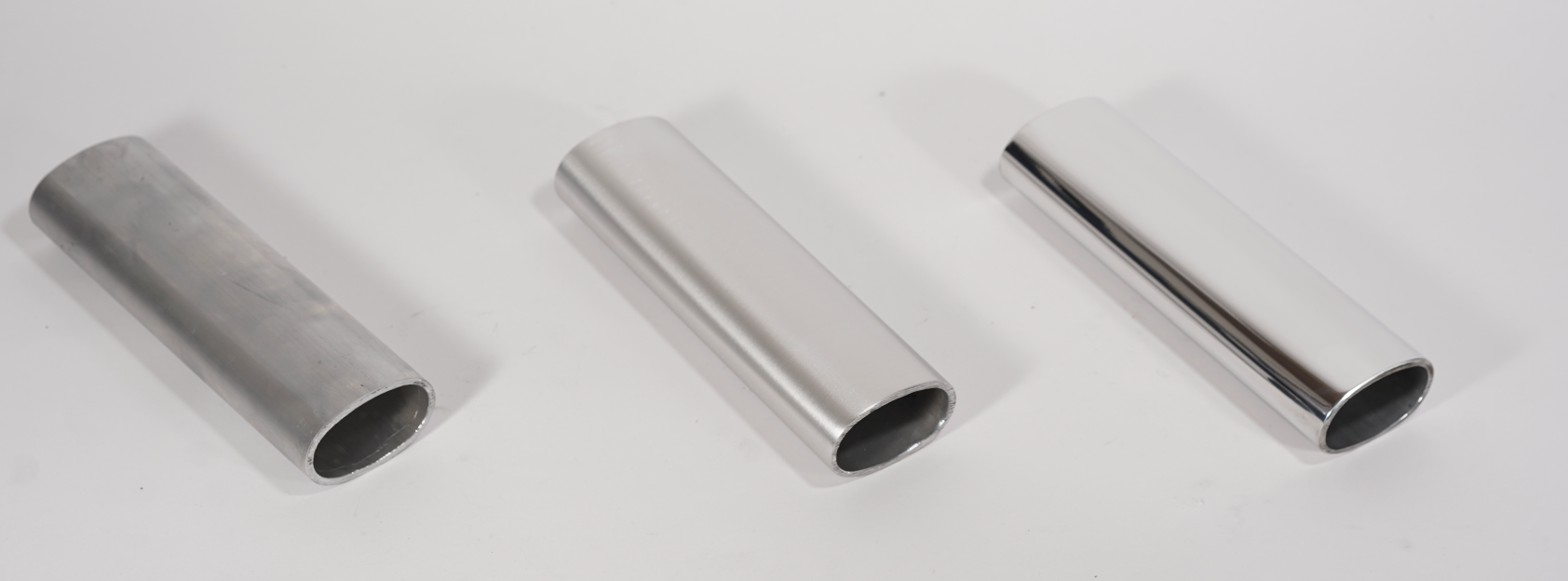

For applications specifying 50 × 25mm oval tube, our 47 × 25mm profile is often used as a near-size alternative in stainless steel, with a choice of wall thicknesses and finishes. Compatibility with existing brackets, fittings or assemblies should be checked for the individual application. 47 x 25mm oval tube samples may be available upon request.
The hollow section is comfortable to grip, and more refined than angular 50 x 25mm rectangular box section, and a lightweight alternative to solid bar. Its elegant form can house fixings, inserts, cabling or other components.
Timeless Tube holds bending tooling for 47 × 25mm oval tube, enabling both sweeping curves and fixed-radius bends in either plane. For applications requiring extensive or tighter-radius bending, we may recommend a 2mm wall thickness to improve forming performance.
We also supply 90 degree elbow connectors, straight cconnectors and end caps for this profile. Read more on our stainless steel connectors and our bending capabilities.

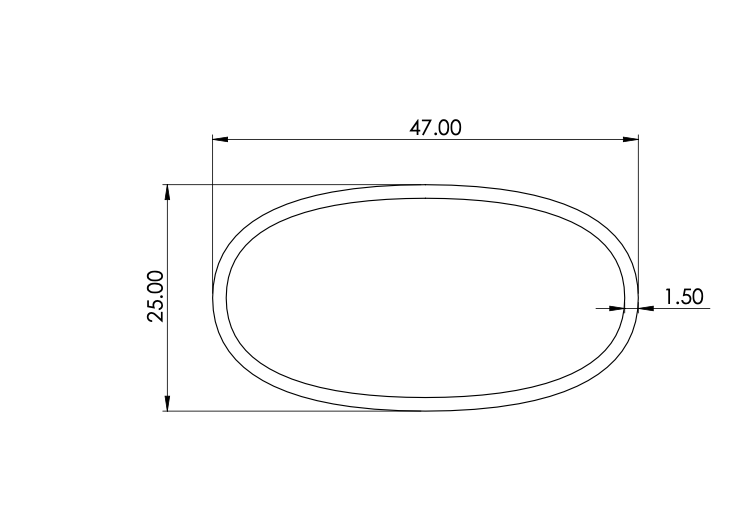

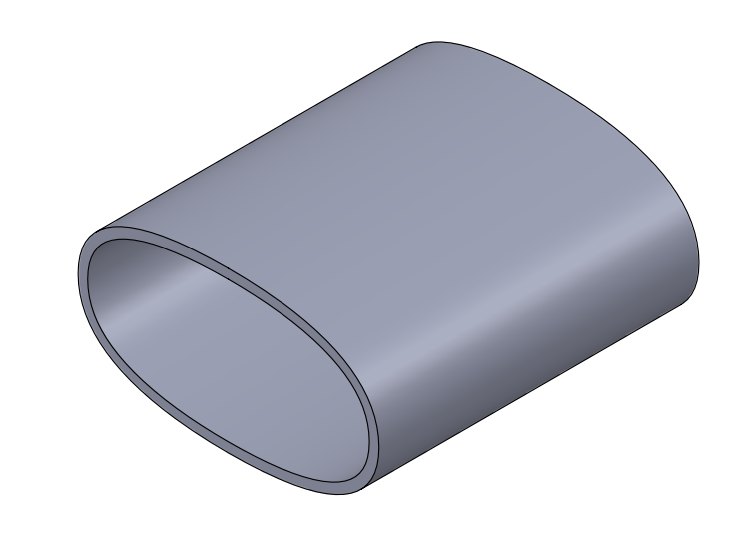

We have CAD drawings available for our 47 x 25mm tube. Please enquire with our technical sales team and we will share these with you.
