Oval steel tubing crafted from our high-quality stainless steel is a desirable alternative to standard round tubing for decorative applications such as metal handrail and balustrades. Timeless are the original elliptical tube supplier, now offering more sizes of oval tube than any other suppliers. We also form oval tubes from aluminium, titanium and copper and its alloys.

Oval steel tubing crafted from our high-quality stainless steel is a desirable alternative to standard round tubing for decorative applications such as metal handrail and balustrades. Timeless are the original elliptical tube supplier, now offering more sizes of oval tube than any other suppliers. We also form oval tubes from aluminium, titanium and copper and its alloys.

icon
Elegant in design, offering a superior aesthetic to standard round tubing
icon
Ergonomic and tactile
icon
Ideal for handrails and balustrades
icon
Commonly used in architectural and marine applications
icon
Sweeping arcs or tighter fixed radius bends available
icon
Connects with bespoke joiners for easier fabrication and a high-end finish
Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers

Over 45 different sizes of stainless steel oval tube and multiple wall thicknesses

from

23.5 x 13.3 x 1.5mm

to

200 x 130 x 3mm

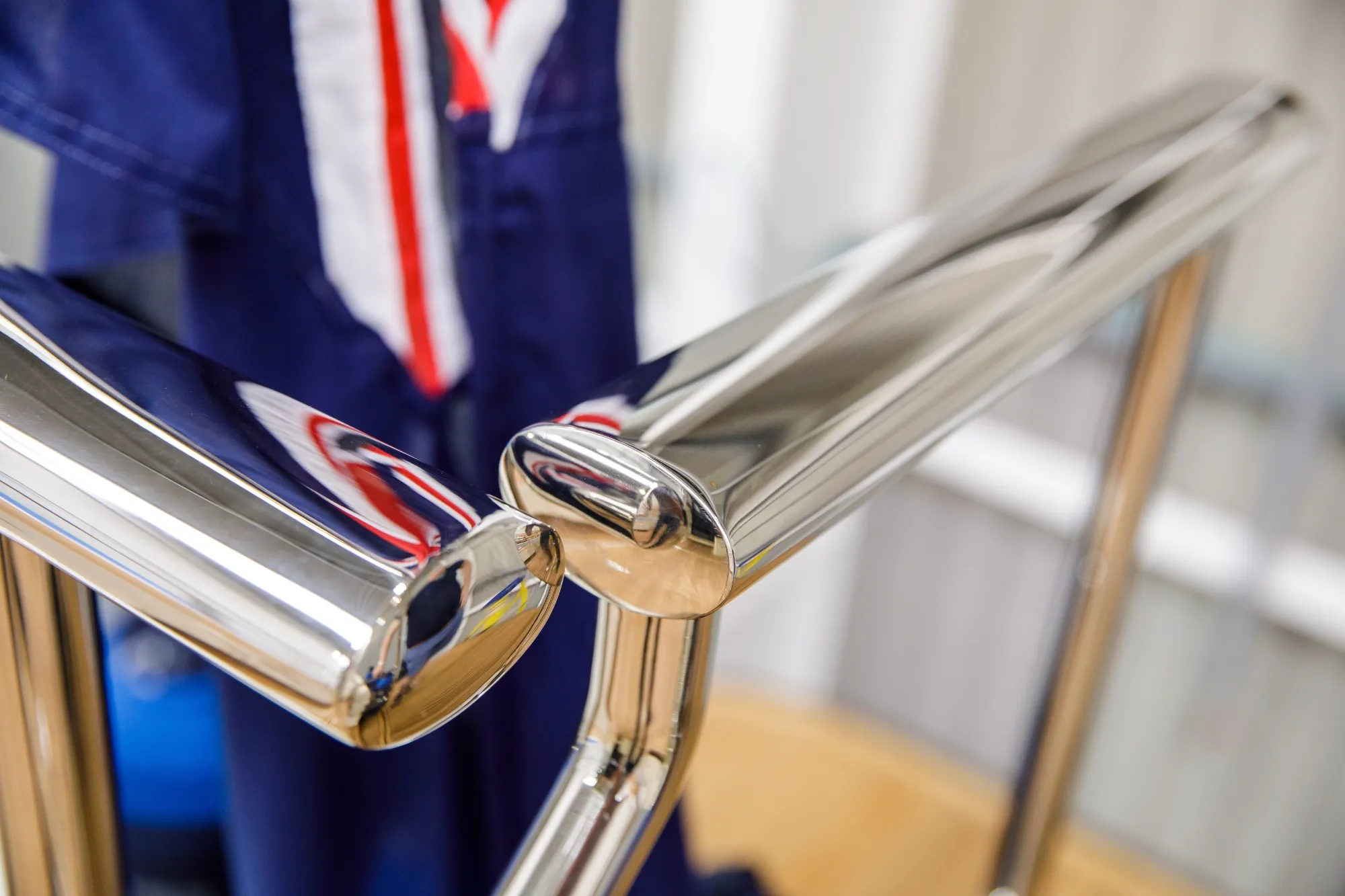

Boat Railings, Stainless Steel Tubes, Boat Handrails

Most popular sizes

23.5x13.3x1.5mm
39.5x20.5x1.5mm
47x25x1.5mm
61x37x3mm

stainless steel tubes, tube handrails, stainless steel boat rails steel tubes suppliers

SIMPLE YET SOPHISTICATED METAL TUBE DESIGN

Founded by Timeless Tube in 1987, the iconic oval tube is simplistic in design and yet it offers so much more than standard round tubing.

Carefully developed over the years, the elliptical oval tube profile combines a gentle aesthetic together with an ergonomic shape, making it inviting to the touch as well as appealing to the eye. When used as a handrail or balustrade, it can be joined by welding our specially designed joiners into the tube without any visual defects, creating an uncompromising, seamless form (oval tubing can even be dry joined with our joiners if welding is not an option).

SIMPLE YET SOPHISTICATED METAL TUBE DESIGN

Founded by Timeless Tube in 1987, the iconic oval tube is simplistic in design and yet it offers so much more than standard round tubing.

Carefully developed over the years, the elliptical oval tube profile combines a gentle aesthetic together with an ergonomic shape, making it inviting to the touch as well as appealing to the eye. When used as a handrail or balustrade, it can be joined by welding our specially designed joiners into the tube without any visual defects, creating an uncompromising, seamless form (oval tubing can even be dry joined with our joiners if welding is not an option).

https://www.timelesstube.com/wp-content/uploads/stainless-steel-1.jpg https://www.timelesstube.com/wp-content/uploads/aluminium-1.jpg
https://www.timelesstube.com/wp-content/uploads/brass-1.jpg https://www.timelesstube.com/wp-content/uploads/cupronickel-1.jpg

Metals and finishes

We can make oval tubing from any of the metals that we offer. Stainless steel 316L or stainless steel 304 are ideal for both internal and external applications. Aluminium 5083 and aluminium 6063 offers reduced weight. Copper, brass or bronze are popular for restorative or decorative jobs - and also healthcare applications, thanks to copper and copper alloys' remarkable antimicrobial properties, which can help to kill viruses and bacteria from metal surfaces in healthcare settings.

360 View

USED IN AN EXTENSIVE RANGE OF APPLICATIONS

Oval tube is our most popular tube shape, because it can be used for so many applications including automotive parts and laboratory components, as well as decorative metal architectural tubing. We currently have over 200 sizes of oval tubing available, and we can custom-make new sizes if your project requires. Our set-up allows us to manufacture small order quantities and prototypes, as well as large scale repeat orders.

Oval tubing coffee table commission by Synergigi
Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers

OVAL TUBE JOINING SYSTEM FOR EASIER INSTALLATION

We offer a joining system for stainless steel oval tubing, which enables you to produce handrail and balustrades with uncompromising, seamless joins. These robust 316L stainless steel joiners – sometimes referred to as elbow joiners – connect tubing at horizontal and vertical corners. We also stock straight joiners that connect long lengths of straight handrail or balustrading.

OVAL TUBE JOINING SYSTEM FOR EASIER INSTALLATION

We offer a joining system for stainless steel oval tubing, which enables you to produce handrail and balustrades with uncompromising, seamless joins. These robust 316L stainless steel joiners – sometimes referred to as elbow joiners – connect tubing at horizontal and vertical corners. We also stock straight joiners that connect long lengths of straight handrail or balustrading.

Fabrication services for oval tubes

As the originator of oval tubing, we have 30 years’ expertise in shaping, bending and fabricating this tube profile. Ask any professional tube bender and they will tell you that bending an oval tube is more complex than bending a round tube because it has two axis. We have the tooling and the expertise to create bends in oval tubing – from tight bends to sweeping curves. We offer this profile in smaller sections of rolled or fixed radius bends.

If you need your oval tubes polished, we have specialised machines for oval tube polishing (or we can polish by hand, depending on the finish and quantity of tubing required).

If you choose to use our joiners to connect your stainless steel oval tubes, we can weld them together then polish out the weld seam for a seamless, high-quality finish.

Using Timeless Tube for your bending, welding and polishing can save you time and money, plus you have the added assurance that expert tube manipulators who understand shaped tubing will be working on your application.

Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers

Sizes

http://stainless%20steel%20tubes

The image shows how dimensions are detailed (for example, 23.5mm x 13.3mm x 1.5mm).

Stainless steel and aluminium 5083 oval tube profiles are sold in lengths of 5.8m (the manufacturing process reduces the standard 6m length by 0.2 metres).

Can’t see the tube sizes you need in the table? Contact us about custom-sized tubing; we may able to fabricate a new size to meet your project requirements. Or download our brochure, which contains sizing information for existing aluminium and brass tubing too, as well as all stainless steel sizes.

Tolerances

Upon request, we will be able to find out wall thickness tolerances from our metal suppliers. Typically the tolerance levels of wall thickness are extremely minimal and any small variations in thickness do not affect further fabrication or the end application. However, it is important to let us know if the tolerance is critical to the application before you place an order. For example, if the shaped tubing component needs to go inside another component, or if the tubing has to house a component, any variation in wall thickness could be critical.

file Download sizes pdf

Stainless steel oval tube sizes

  • Metric
  • Imperial
Tube sizes 1.5mm
wall thickness
2mm
wall thickness
3mm
wall thickness
2.77mm
wall thickness
23.5mm x 13.3mm
30.5mm x 17.5mm
39.5mm x 20.5mm
43mm x 30mm
47mm x 25mm
50mm x 36mm
61mm x 37mm
71mm x 47mm
76mm x 50mm
80mm x 58mm
92mm x 56mm
121mm x 76mm
128mm x 70mm
143mm x 45mm
194mm x 129mm
200mm x 100mm
Tube sizes 0.059”
wall thickness
0.079”
wall thickness
0.118”
wall thickness
0.109”
wall thickness
0.925″ x 0.524″
1.201″ x 0.689″
1.555″ x 0.807″
1.693″ x 1.181″
1.850″ x 0.984″
1.969″ x 1.417″
2.402″ x 1.457″
2.795″ x 1.772″
2.992″ x 1.969″
3.150″ x 2.283″
3.622″ x 2.205″
4.764″ x 2.992″
5.039″ x 2.756″
5.630″ x 1.772″
7.638″ x 5.079″
7.874″ x 3.937″
stainless steel tubes, tube handrails, stainless steel boat rails Boat Railings, Stainless Steel Tubes, Boat Handrails

Only need a small amount of oval tubing?

At Timeless we make our tubing to order, which means that we rarely hold stock. However, we sell a few of our most popular sizes of oval stainless steel tube and joiners on eBay, allowing you to buy some tubing sizes in small quantities — in 0.5-metre increments going up to 3m (contact us directly if you require over 3m).

This is ideal for when you require oval tubes for a smaller project. Choose between 47x25x1.5mm, 23.5x13.3x1.5mm, or 31x15x1.5mm stainless steel tubes. All are made in high-quality marine-grade 316L stainless steel with a bright polish finish.

Only need a small amount of oval tubing?

At Timeless we make our tubing to order, which means that we rarely hold stock. However, we sell a few of our most popular sizes of oval stainless steel tube and joiners on eBay, allowing you to buy some tubing sizes in small quantities — in 0.5-metre increments going up to 3m (contact us directly if you require over 3m).

This is ideal for when you require oval tubes for a smaller project. Choose between 47x25x1.5mm, 23.5x13.3x1.5mm, or 31x15x1.5mm stainless steel tubes. All are made in high-quality marine-grade 316L stainless steel with a bright polish finish.

APPLICATIONS FOR OVAL TUBE

icon
Handrails
icon
Balustrades
icon
Guardrails
icon
Luggage Racks
icon
Medical Equipment
icon
Door Handles
icon
Kick Rails
icon
Metal Stair Nosing
icon
Boat Gunwales
icon
Biminis and t-tops (boat rails)
stainless steel tubes, tube handrails, stainless steel boat rails
Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers
Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers
https://www.timelesstube.com/wp-content/uploads/Talk-to-a-Specialist.jpg

Need help finding the right size and tube shape?

Speak with one of our tube specialists to find out how best to intergrate shaped tubing into your project. We can give you infomation on the best profile, metal, finish and dimensions for your application.

headset talk to a specialist

talk to a specialist

Minimum order quantity of 1 length (5.7m/5.8m). Orders of 4 lengths or under incur a £50 set-up fee. We do not form tube from mild steel.

INTERNATIONAL ORDER? WE SHIP OVAL TUBES OVERSEAS

Our clients come to us from across the globe for our unique shaped tubing and specialist tube fabrication. We can ship our oval tube to North America and Europe in as little as 48 hours. Our freight team will work to meet your transit times and budget; get in touch to discuss shipping options.
