Clean, rounded lines and a flat-sided profile provide strength for architectural purposes – with a flat side useful for fixing to other elements.

The flat-sided oval tube is practical and elegant, making it a popular choice for designers and architects. Its clean shape and versatility lends itself well to a vast number of applications.

The smooth, rounded lines combined with the flat-sided profile provide additional strength for architectural purposes. The flat side also means it is very easy to fix securely to other elements. It offers simple maintenance, which is why flat-sided oval tube is so often used in marine and medical industries.

When the profile is formed in stainless steel 316L and stainless steel 304, the tube can be used externally, thanks to the extreme durability of this metal. For more decorative or restorative applications, we can also create our flat-sided oval tube with copper, brass, bronze and aluminium.

Stainless steel and aluminium 5083 flat-sided oval tube profiles are sold in lengths of 5.7m (the manufacturing process reduces the standard 6m length by 0.3 metres).

Applications

APPLICATIONS FOR FLAT-SIDED OVAL TUBE
  • Medical equipment
  • Laboratory equipment

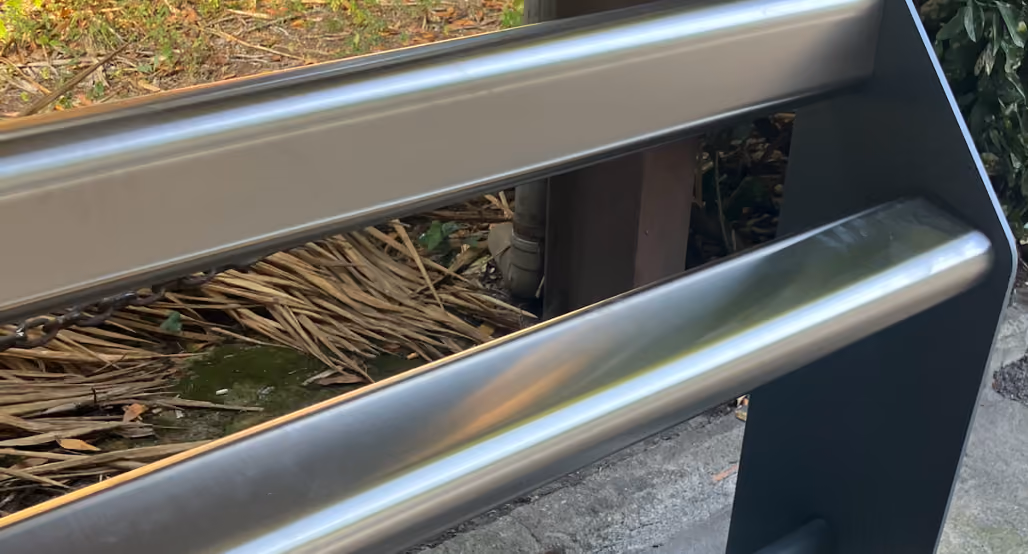

  • Handrails
  • Guardrails
  • Assisted living equipment
  • Mobility equipment
  • Hoists
  • Cranes
  • Ladders
  • Gym equipment
  • Luggage racks
  • Furniture
  • Radiators
  • Kick rails
  • Lighting
  • Street signs
  • Door handles
  • Decorative shrouds
  • Queue management systems
  • Baluster posts
  • Balustrades

Sizes

Flat-sided Oval Tube Specifications.


The image above shows how dimensions are detailed (for example, 65mm x 27mm x 2mm).
Below is a table of the available stainless steel tube sizes that we have in our existing range for this shape of tube. Can’t see the tube sizes you need? Contact us to discuss your project requirements – we may be able to fabricate some custom-made sized tubing. Or download our sizing PDF, which contains sizing information for existing aluminium and brass tubing too, as well as all stainless steel sizes.

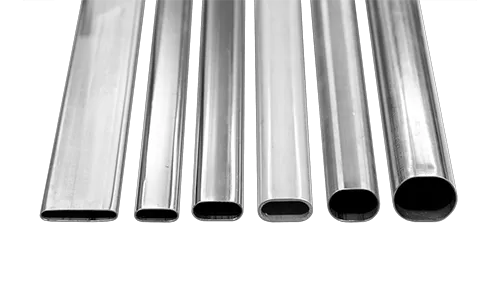

Flat-sided Oval Stainless Steel Tube Dimensions

Width Height Depth
23mm 12mm 1.5mm
27mm 14mm 1.5mm
31mm 15mm 1.5mm
35mm 10mm 1.5mm
35mm 21.5mm 2mm
37mm 22mm 1.5mm
38mm 11mm 1.5mm
39mm 19mm 1.5mm
40.5mm 20mm 2.77mm
41mm 15mm 1.5mm
43mm 28mm 1.5mm
48mm 21mm 1.5mm
62mm 31mm 1.5mm
62mm 31mm 2mm
62mm 31mm 3mm
69mm 29mm 2mm
78mm 39mm 3mm
167mm 66mm 3mm
