stainless steel tubes, tube handrails, stainless steel boat rails

This elegant twisted square tube developed by Timeless takes inspiration from traditional wrought iron work, providing an exciting, innovative form for architects, fabricators and architectural metalworkers. It provides a unique alternative to conventional steel square tubing.

This elegant twisted square tube developed by Timeless takes inspiration from traditional wrought iron work, providing an exciting, innovative form for architects, fabricators and architectural metalworkers. It provides a unique alternative to conventional steel square tubing.

icon
Aesthetically striking
icon
Stunning alternative to standard round or box square tube profiles
icon
A contemporary take on traditional barley twist design
icon
Boasts impressive strength integrity
icon
Lighter and more cost-effective than conventional solid twisted bars
icon
Popular for stainless steel handrails and balustrades
icon
Choose the ‘tightness’ of twist — from continuous to an incremental 180 degree twist

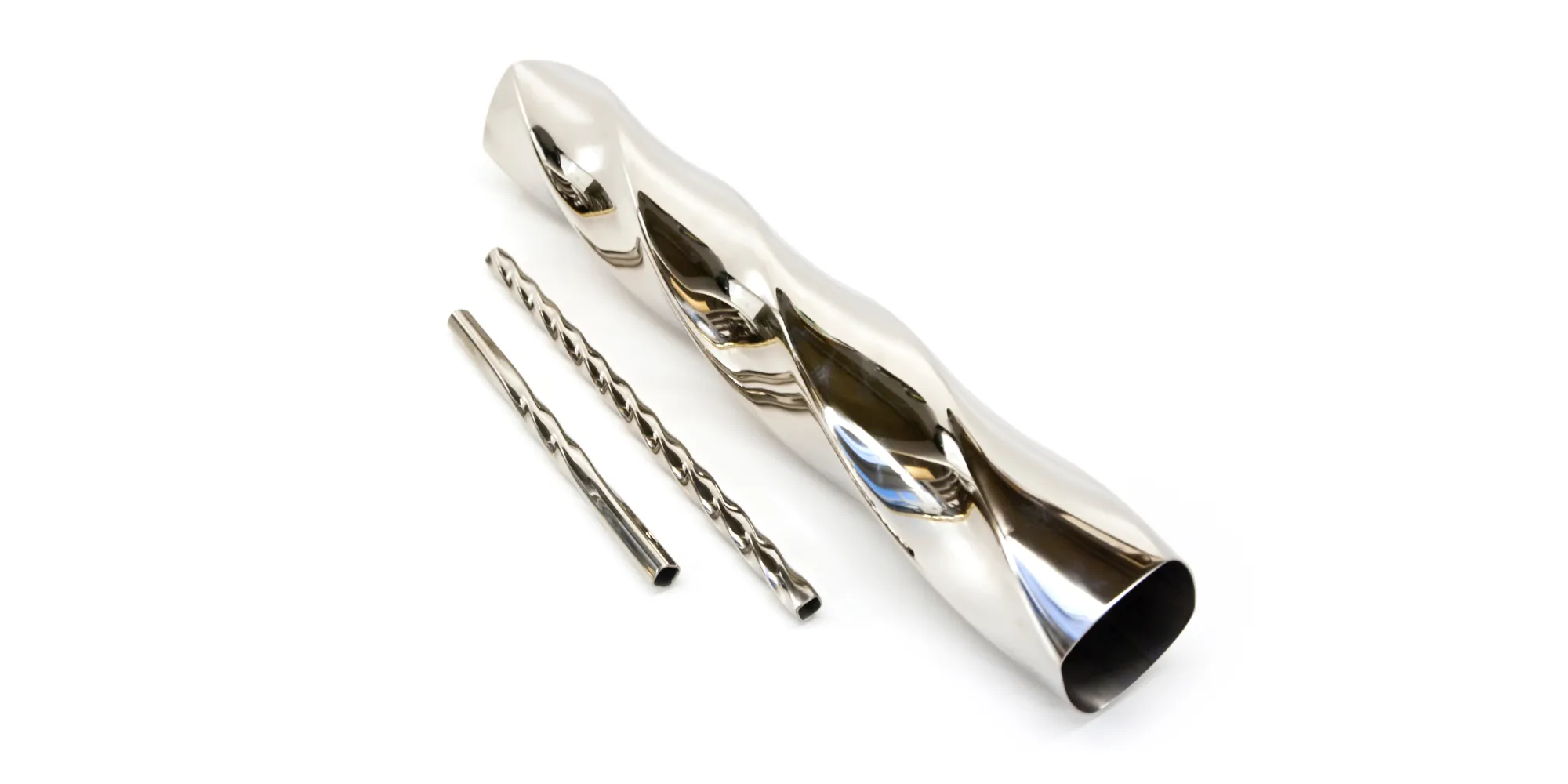

7 existing sizes of stainless steel twisted square tube and multiple wall thicknesses

from

17 × 17 × 1.5mm

to

88 × 88 × 2mm

Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers

Most popular sizes

17 × 17 × 1.5mm
33 × 33 × 1.5mm
45 × 45 × 1.5mm
45 × 45 × 2mm

seamless stainless steel tubing

SUPERIOR TO SOLID TWISTED METAL BARS

Our twisted square stainless steel boasts impressive strength integrity compared to a conventional solid twisted bar. The fact that it is hollow means that it is not only lighter, but cheaper, than any solid metal alternative. This shape improves the rigidity and deflection capabilities in comparison to round tubes of the same wall thickness and material grade, as our carefully controlled tests have proven.

SUPERIOR TO SOLID TWISTED METAL BARS

Our twisted square stainless steel boasts impressive strength integrity compared to a conventional solid twisted bar. The fact that it is hollow means that it is not only lighter, but cheaper, than any solid metal alternative. This shape improves the rigidity and deflection capabilities in comparison to round tubes of the same wall thickness and material grade, as our carefully controlled tests have proven.

YOU CAN CHOOSE THE TIGHTNESS OF TWIST

Our engineers can vary the degree of twists in your twisted square tubes, giving you a choice of ‘continuous twist’ (for a more obvious and dramatic effect), or an ‘incremental twist’ (for a softer and more subtle aesthetic). If you need our engineers to leave material untwisted (straight) at either end of the tube for installation reasons, we have the flexibility to do this. We typically manufacture this profile in either stainless steel 316L or stainless steel 304. The profile is especially popular for stainless steel handrails and balustrade spindles. We can also form this tube profile in copper, brass, and bronze for more decorative tube applications.

Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers

ARTISTIC, SPECIALITY TUBING WITH A SCULPTURAL APPEAL

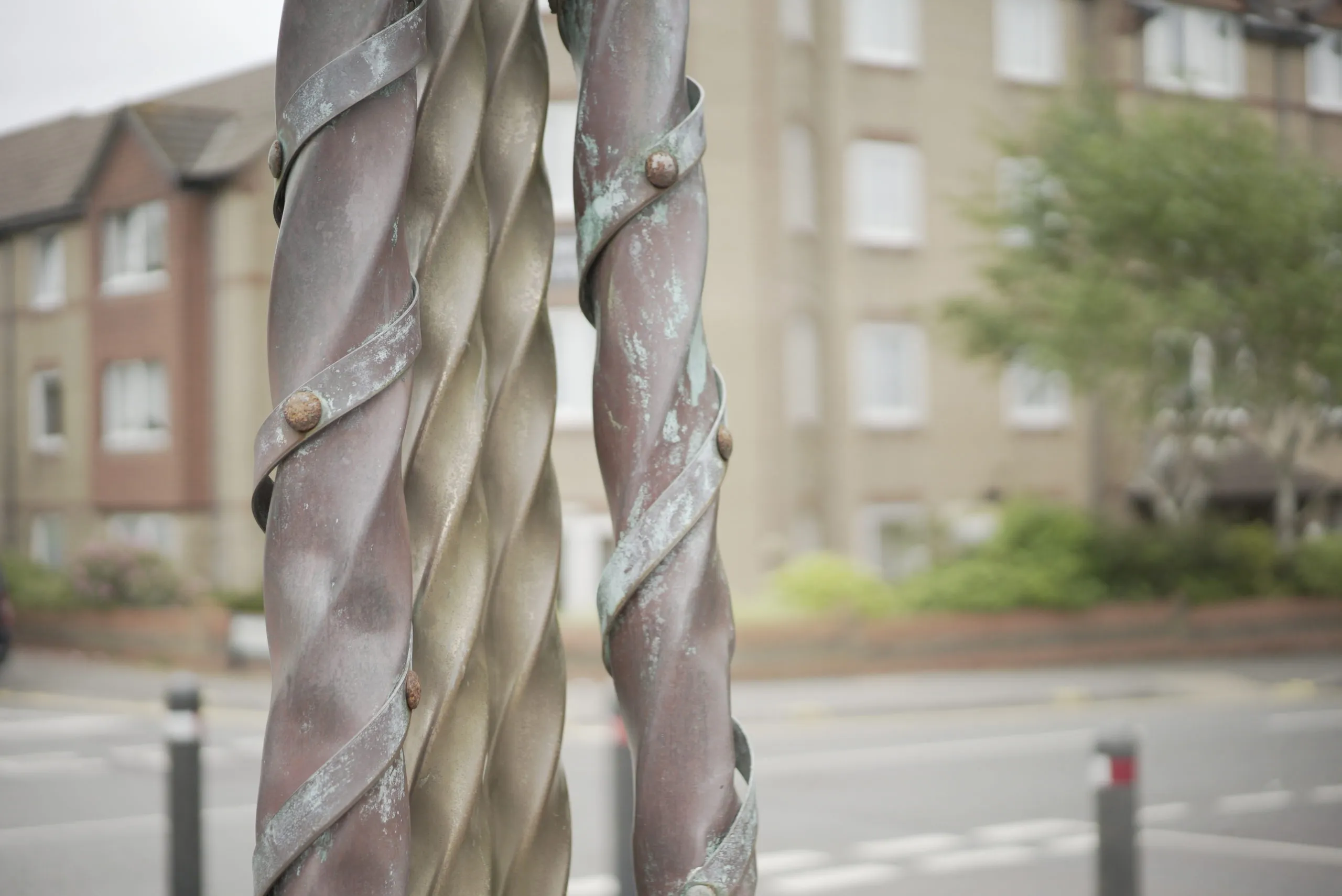

Our engineers have formed this tubing for two independent high-profile art installations (one of which was a moving artwork located in the shop windows of Selfridges Department store in London, and the other is a permanent statue situated in a prestigious coastal area of Bournemouth). These are a testament to the fact that twisted square tubing has sculptural qualities which afford it a strong aesthetic appeal. If you want to harness the strength of stainless steel in your application but would like to experiment with colour, talk to our team about power coating or PVD finishes, or visit our metals and finishes page.

handrail tubing

360 View

Fabrication services for twisted square tube

This decorative tube, popular with interior designers, artists, sculptors and architects, can be fabricated by Timeless so that it is ready to be installed. Our expert metal fabricators can cut, weld and polish this tubing in-house should you require. Our skilled fabricators have the tooling and the know-how when it comes to further fabrication of this decorative tube profile, saving you the effort of managing further fabrication processes yourself.

stainless steel tubes, tube handrails, stainless steel boat rails
http://www.timelesstube.com/wp-content/uploads/stainless-steel-1.jpg http://www.timelesstube.com/wp-content/uploads/aluminium-1.jpg
http://www.timelesstube.com/wp-content/uploads/brass-1.jpg http://www.timelesstube.com/wp-content/uploads/cupronickel-1.jpg

Metals and finishes

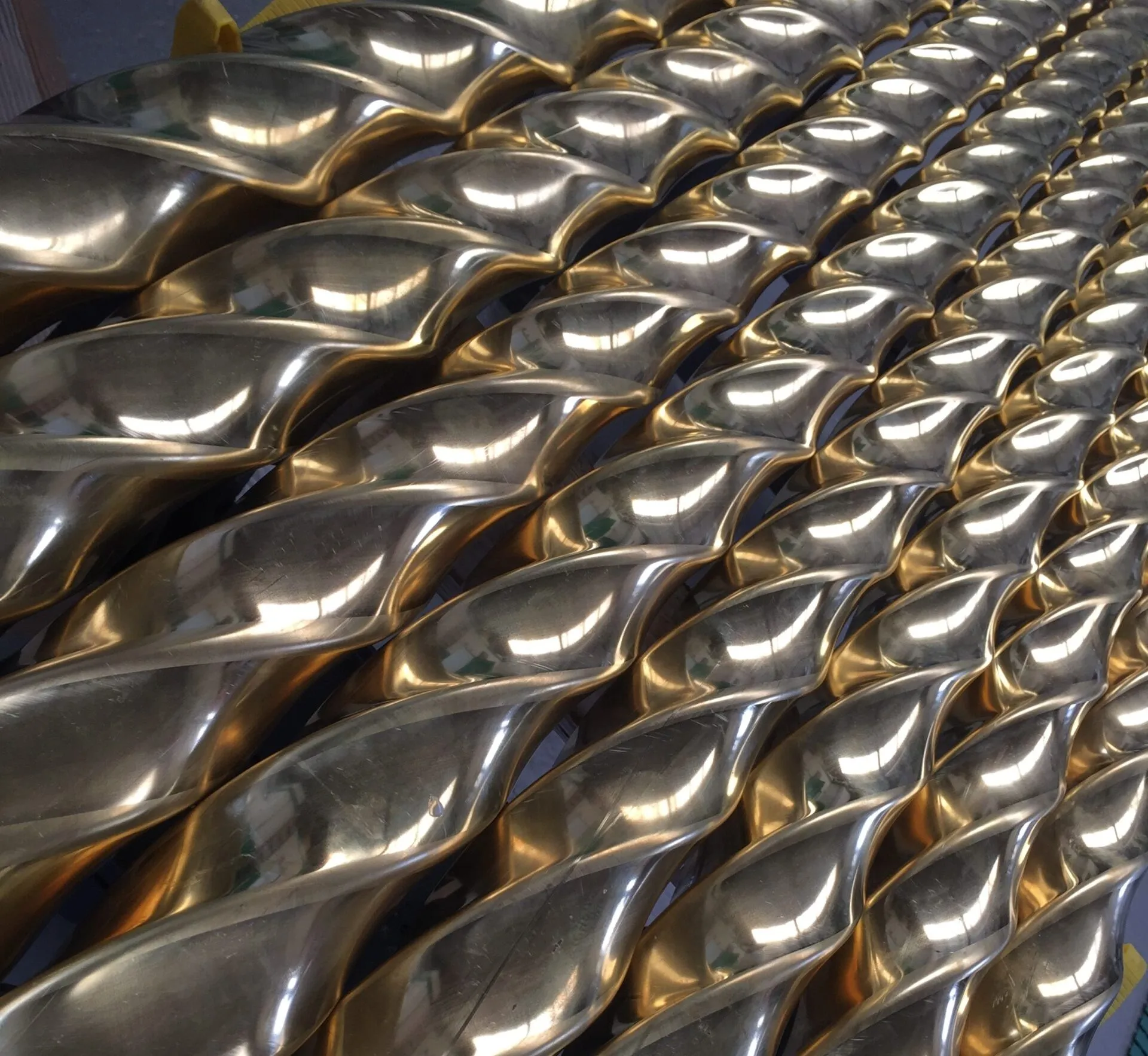

There are several finishes available for this decorative tubing option – from a super mirror polish to a contemporary satin finish. Speak to our team about other finishes available for stainless steel or aluminium twisted square tube such as anodising or PVD coating.

Sizes

http://Boat%20Railings,%20Stainless%20Steel%20Tubes,%20Boat%20Handrails

The image above shows how dimensions are detailed (for example, 65mm x 27mm x 2mm).

Stainless steel and aluminium 5083 twisted square tube profiles are sold in lengths of 5.8m (the manufacturing process reduces the standard 6m length by 0.2 metres).

Can’t see the tube sizes you need in the table? Contact us about custom-sized tubing; we may able to fabricate a new size to meet your project requirements. Or download our brochure, which contains sizing information for existing aluminium and brass tubing too, as well as all stainless steel sizes.

Tolerances

Upon request, we will be able to find out wall thickness tolerances from our metal suppliers. Typically the tolerance levels of wall thickness are extremely minimal and any small variations in thickness do not affect further fabrication or the end application. However, it is important to let us know if the tolerance is critical to the application before you place an order. For example, if the shaped tubing component needs to go inside another component, or if the tubing has to house a component, any variation in wall thickness could be critical.

file Download sizes pdf

Twisted square stainless steel tube sizes

  • Metric
  • Imperial
Tube sizes 1.5mm
wall thickness
2mm
wall thickness
17mm x 17mm
23mm x 23mm
28mm x 28mm
33mm x 33mm
45mm x 45mm
66mm x 66mm
88mm x 88mm
Tube sizes 0.059”
wall thickness
0.079”
wall thickness
0.669″ x 0.669″
0.906″ x 0.906″
1.102″ x 1.102″
1.339″ x 1.339″
1.772″ x 1.772″
2.598″ x 2.598″
3.465″ x 3.465″

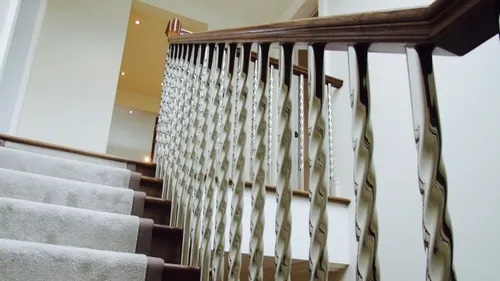

APPLICATIONS FOR TWISTED SQUARE TUBE

icon
Staircases
icon
Spindles
icon
Balustrades
icon
Balusters
icon
Furniture
icon
Decorative shrouds
icon
Lighting
icon
Door handles
Steel Tubes Suppliers, Tube Handrails, Stainless Steel Tube Suppliers
http://www.timelesstube.com/wp-content/uploads/Talk-to-a-Specialist.jpg

Need help finding the right size and tube shape?

Speak with one of our tube specialists to find out how best to intergrate shaped tubing into your project. We can give you infomation on the best profile, metal, finish and dimensions for your application.

headset talk to a specialist

talk to a specialist

Minimum order quantity of 1 length (5.7m/5.8m). Orders of 4 lengths or under incur a £50 set-up fee. We do not form tube from mild steel.

International shipping available

Our clients come to us from across the globe for our unique shaped tubing and specialist tube fabrication. We can ship our twisted square tube to North America and Europe in as little as 48 hours. Our freight team will work to meet your transit times and budget; get in touch to discuss shipping options.
